Light source: 12*10W RGBW

Beam angle: 1.5°

Sphere size: 20cm in diameter

Weight: 1.55kg

Controls and Settings

Panel: Built-in LCD panel

Buttons: 4 mechanical menu buttons

Operation: DMX512 Control Protocol

Channel mode: 10ch/54ch

Control: DMX512 control/master-slave control/voice control

Dimming: 0-100% linear dimming

Electrical and Interface

Voltage: 90~240V50/60Hz

Power: 200W

Standard 1.5m 3-pin XLR Canon quick plug-in cable

Standard 1.5m 3-core fast power plug-in cable, the maximum number of connected machines is 6 pcs

Working temperature: -10~400℃

Exterior

Mainframe iron shell with black spray

Luminous plastic shell

IP20 protection class

Install

Minimum installation height 4 meters

Lamp hook hanging installation

Safety rope fastening bolt

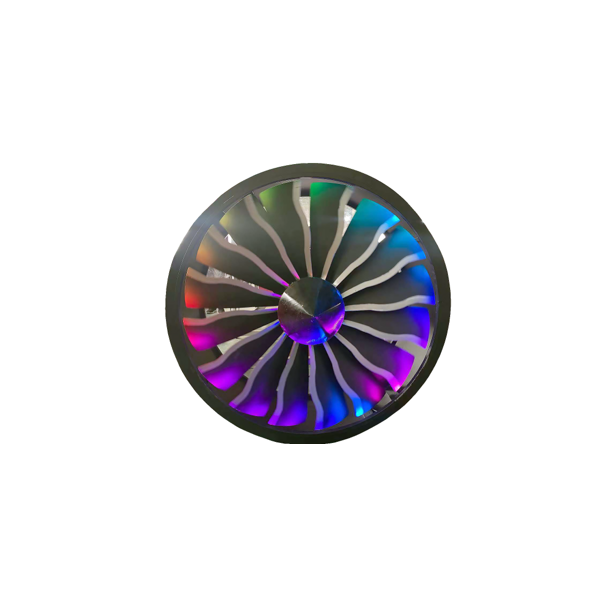

Voltage: AC 220v-240V 50-60Hz

Power: 150W

Motor: 40W geared motor (speed adjustable)

Light source: LED high-brightness magic light strip

Luminous color: RGB horse racing effect

Power supply: Powercon input/output

Signal: XLR 3pin input/output

Control mode: DMX512 signal

Number of channels: 8CH, RDM function

Installation method: welding fixed

Size: Thickness 0.42m

Diameter: 1.5m

Shell Material: Metal

Shell color: black

Voltage: AC 220v-240V 50-60Hz

Power: 150W

Motor: 40W geared motor (speed adjustable)

Light source: LED high-brightness magic light strip

Luminous color: RGB horse racing effect

Power supply: Powercon input/output

Signal: XLR 3pin input/output

Control mode: DMX512 signal

Number of channels: 8CH, RDM function

Installation method: welding fixed

Size: Thickness 0.42m

Diameter: 2m

Shell Material: Metal

Shell color: black

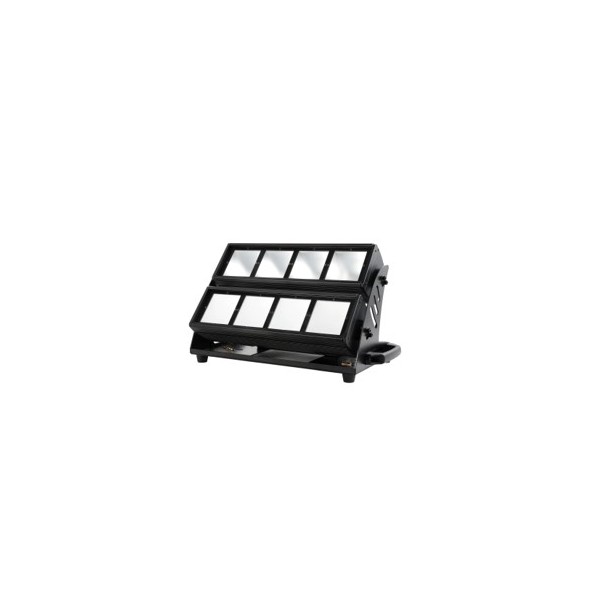

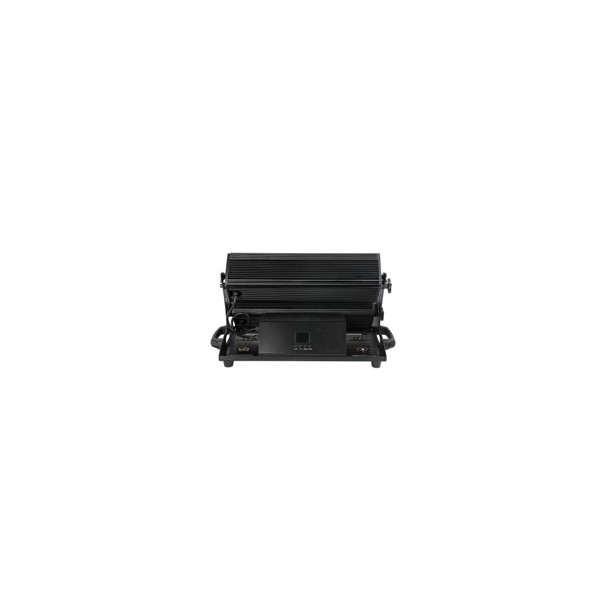

The LED cyclorama light adopts a new light source and special asymmetric optics, and joins the advanced HSIC new color mixing system, which can quickly mix the desired color, and the color mixing is extremely uniform. It can quickly call out high-quality white light, with a color temperature of 2700K-8000K, and a color rendering index of more than 90. It can quickly call out the special colors for theater theaters, making it the best choice for professional theater theaters and professional performances.

Technical parameter

【Power supply】

  AC100～240V, 50/60Hz

  Electronic switching power supply, power factor: >98

Power: 400W

【Light source】

7-color LED: red*48, green*32, blue*24, royal blue*16, cyan*16, amber*24, lime green*40

  Light source life: 50000 hours

  Light color quality: >90 (2700K-8000K)

  Optical angle: wedge-shaped reflector 45*60 degrees

  Color range: >16.7 million colors

【Operate】

  International standard DMX control protocol

  DMX512 control/manual mode

  Dimming: 0～100% linear dimming

【Control Mode】

  Color mixing system: HSICHSIC (brightness/saturation temperature)

  Control panel: LCD display + four buttons

  Channel mode: 7CH/9CH/11CH/15CH/17CH/22CH

【Basic parameters】

  Protection class: IP20

  Ambient temperature: -25℃～+35℃

  Accessories: power cord, signal line

  Net weight: 15KG

  Lamp body size: 650*310*327MM

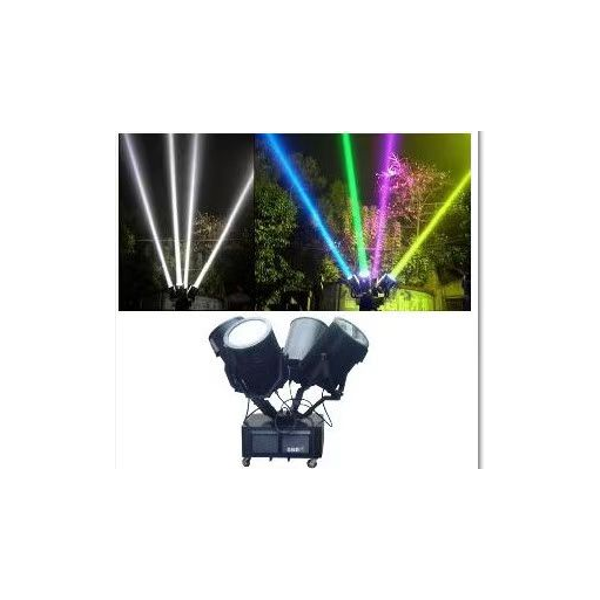

Frequency: 50/60Hz

Input voltage: AC220V/50-60Hz

Waterproof grade: IP55

Bulb specification: spherical xenon bulb 3000W

Lamp life: 800-1000 hours

Dielectric strength: 1.5KV

Insulation resistance: >2MΩ

Rotation angle: left and right 110° automatic rotation

The up and down angle can be adjusted manually by 60°

Dimming function: the size of the light column can be adjusted manually

Beam angle: 0.6-0.8°

Cooling method: forced air cooling

Packing size: 740*630*1040(mm)

Packing weight: 65KG

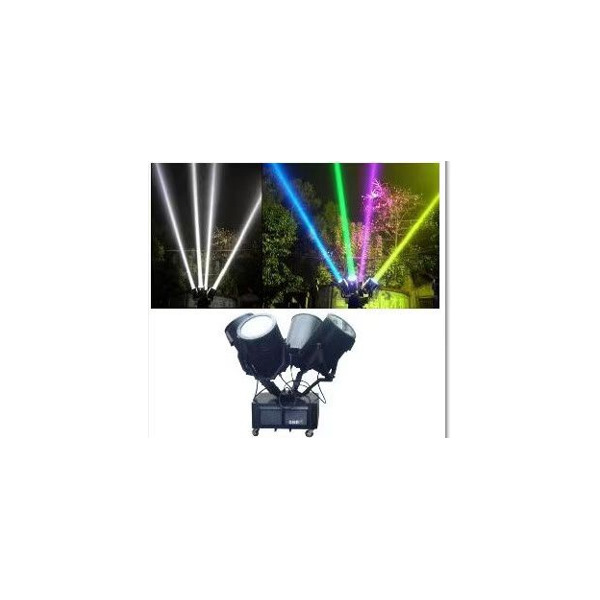

Frequency: 50/60Hz

Input voltage: AC220V/50-60Hz

Waterproof grade: IP55

Bulb specification: spherical xenon bulb 5000W

Lamp life: 800-1000 hours

Dielectric strength: 1.5KV

Insulation resistance: >2MΩ

Rotation angle: left and right 110° automatic rotation

The up and down angle can be adjusted manually by 60°

Dimming function: the size of the light column can be adjusted manually

Beam angle: 0.6-0.8°

Cooling method: forced air cooling

Packing size: 740*630*1040(mm)

Packing weight: 65KG
