特点：
供电：三相五线制AC380V±10％，频率50Hz±5％.
额定电流：400A 380V输入 每路40A输出
功率：60路×4KW
设两脚和三脚万能用插座方便使用，过载与短路双重保护高分断空气开关.带每路 25A空气开关、2路 250A总开关
电压电流直观显示，带黑色机柜
60路产品尺寸：600*800*1000mm
大约重量：65KG
Specific References
16 other products in the same category:

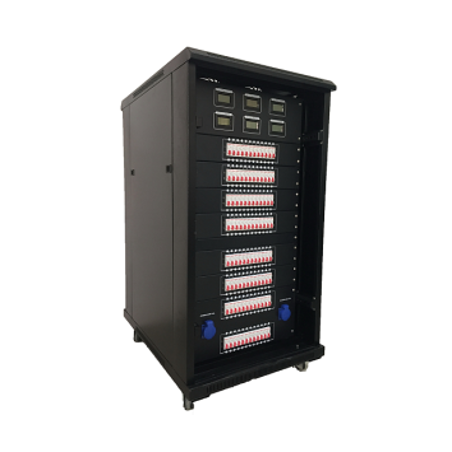

Features:
Power supply: three-phase five-wire AC 380 V 10%, frequency 50Hz±5％%.
Rated current: 400A 380V input, 40A output per channel
Power: 60 channels× ×4KW
Two-pin and three-pin universal sockets are provided for easy use, and high breaking air switch with overload and short-circuit double protection, with 25A air switch for each channel and 250A master switch for two channels.
Visual display of current, with black cabinet
60-way product size: 600*800*1000mm
Approximate weight: 65KG
