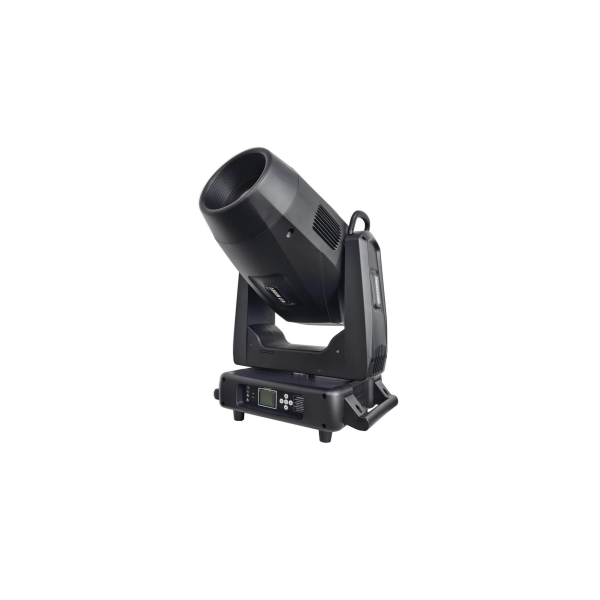

1000W LED Frame Light

1000W LED Frame Light

Input voltage: AC100-240V,50/60Hz

Power limit: 1050W

Life of LED: 20,000 hours

Color temperature: 6500K

Color rendering index: standard mode Ra>75, high-definition mode Ra>90

Luminous flux: 28000LM

Power interface: 16A power plug

Signal interface: three-core canon block

Control mode: DMX512, RDM

Mode: 36 channels of international standard DMX512

Display system: 2.7-inch touch LCD screen, Chinese and English display, 180° rotation.

Color mixing system: independent CMY color mixing system

Color temperature adjustment: independent CTO 2800K-6500K linear adjustment.

Prism wheel: rotate 3 prisms +6 rows of mirrors.

Effect panel: It can simulate dynamic effects such as moving flame and gurgling water.

Color wheel: 6 colors+white light

Fixed gobo: 11 fixed gobo pieces with outer diameter of 25.4mm+ white circle

Rotation gobo: seven plug-in patterns have an outer diameter of 26.9mm, an effective diameter of 16.5mm and a thickness of 1.1mm

Cutting system: 4 independent cutting pieces, each piece can be turned off independently and can rotate 90.

Atomization system: 0~100% linear atomization

Aperture system: 6%~100% smooth adjustment

Zoom system: 6 ~ 50 linear focus

Dimming system: 0-100% linear adjustment

Stroboscopic system: the frequency can reach up to 25Hz, and random stroboscopic and pulse stroboscopic horizontal scanning can be selected: 540° (16 bit precision scanning).

Vertical scanning: 270° (16 bit precision scanning)

Protection level: IP20

Working environment: 0-45℃

Product dimensions: 510L*345W*800H(mm)

Net weight of product:

Gross weight of product:

Product appearance: flame retardant, high temperature resistant, folding integrated lamp hook
