Height:1.7-4.3 meters

Crossbar specifications: 35*35mm/2 meters long, 8 lamp positions

Round tube specifications: 60/40/35mm

Weight: 20kg

Bearing weight: 70kg

Packaging and transportation: 202*24*20cm

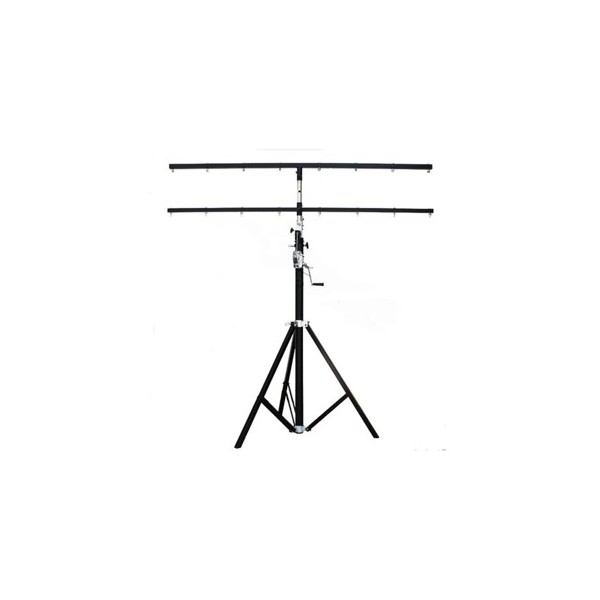

This is a hand-cranked mobile light stand, which is specially designed for small and medium-sized mobile stage performances. The detachable handle has a safety self-locking function.

Height: 1.7-4.3 meters

Crossbar specifications: 35*35mm/2 meters long, 2 bars, 16 lamp positions

Round tube specifications: 60/40/35mm

Weight: 20kg

Bearing weight: 70kg

Packaging and transportation: 202*24*20cm

This is a hand-cranked mobile light stand, which is specially designed for small and medium-sized mobile stage performances. The detachable handle has a safety self-locking function.

两门防震机柜

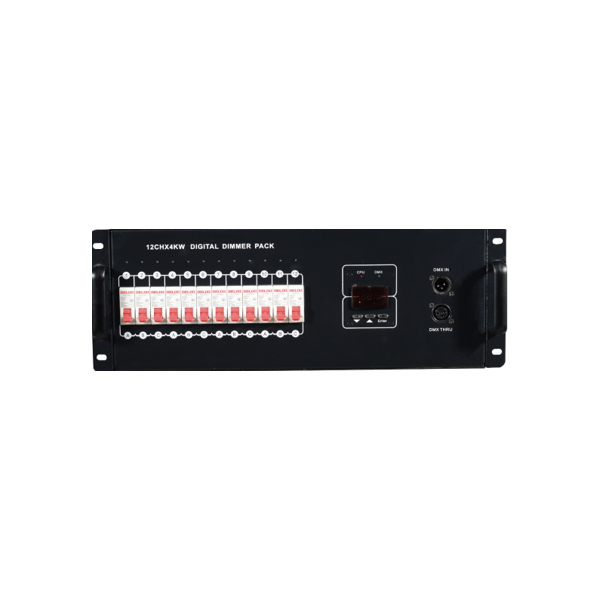

Performance characteristics

◎12 channels of power output (each channel output 4KW)

◎Equipped with a secondary switch, in line with power supply specifications

◎The indicator light shows the three-phase power supply status

technical parameter

◎Power supply: 380Volt±10%AC, 50Hz/60Hz

Power supply: three-phase five-wire system AC380V±10%, frequency 50Hz±5%.

  Rated power: 12 x 4KW; applicable to any load.

  Each channel is 20A air switch, overload and short circuit double protection high breaking air switch.

  A.B.C three-phase work indicator. It is equipped with two-pin and three-pin universal sockets for easy use, imported terminal input, and single 40A bakelite plug output.

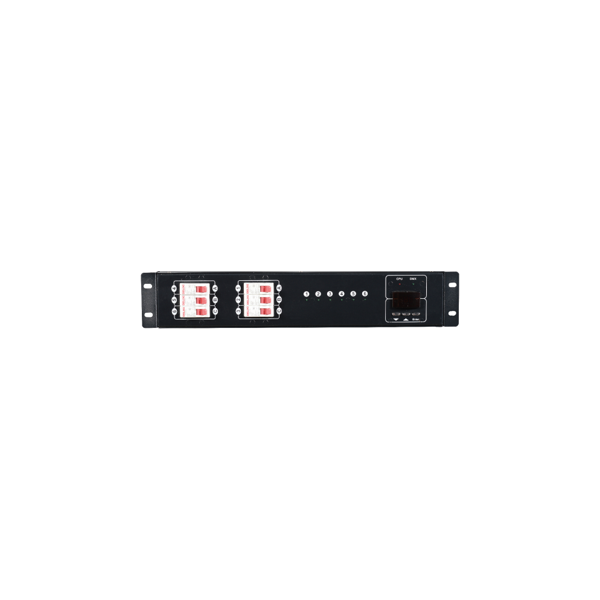

Power supply: three-phase five-wire AC 380 V 10%, frequency 50Hz±5％%.

Signal interface: Digital DMX-512(1990).

Rated power: 6 channels× ×4KW.

Functional features:

1. Silicon controlled silicon chip, the core device of silicon box, is made of imported materials, with stable and reliable performance.

2. Good heat dissipation device and forced air cooling combined with intelligent environmental protection control system.

3. High-efficiency anti-interference choke has strong anti-interference ability, low noise and current rising time of 220us-450us.

4. Setting of initial circuit and preheating value.

5. The dimming curve can be set to linear or on-off state, and the on-off value is 50%. When the brightness value of the input in on-off state is greater than or equal to 50%, the output circuit is full, otherwise, there is no output. Overall dimensions (mm):L485×W485×H90

Weight of the whole machine: 11.7KG

工程电源线

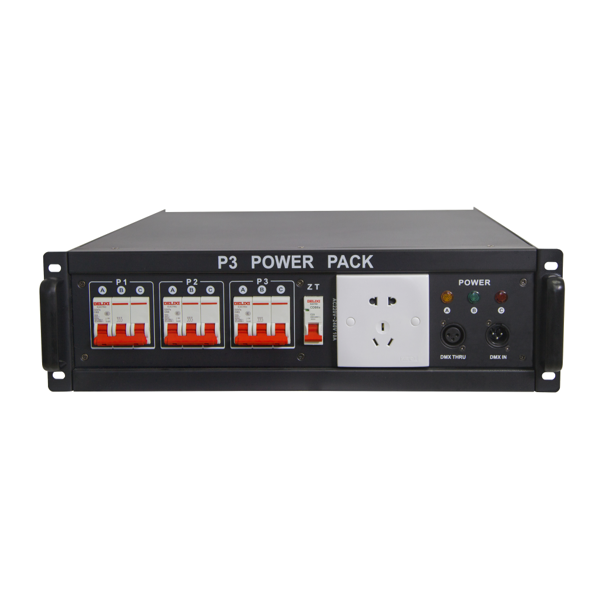

3-way power supply box

1.P3 power box;

2. It can be used with at least 3 silicon boxes or 3 straight-through boxes;

3. It has 3X10A and 40A spare output sockets and universal 2-3-pole sockets;

4. It has three-phase power indicator light and DMX signal transfer;

5. High breaking air switch with overload and short circuit double protection.

Power supply: three-phase five-wire AC380V±10％%, frequency 50Hz±5％%.

Interface: Digital Dual DMX-512(1990).

Rated power: 12 channels× 4kW. The maximum output power of each circuit can reach 4kW.40A Bakelite plug-in output.

Functional features:

1. Silicon controlled silicon chip, the core device of silicon box, is made of imported materials with stable and reliable performance.

2. Good heat dissipation device and forced air cooling combined with intelligent environmental protection control system.

3. High-efficiency anti-interference choke has strong anti-interference ability, low noise and current rising time of 220us-450us.

4. Setting of initial circuit and preheating value.

5. The dimming curve can be set to linear or on-off state, and the on-off value is 50%. When the brightness value of the input in on-off state is greater than or equal to 50%, the corresponding output circuit is fully output, otherwise, there is no output.

Overall dimension (mm):L515×W485×H14.5

Whole machine weight: 15.4KG

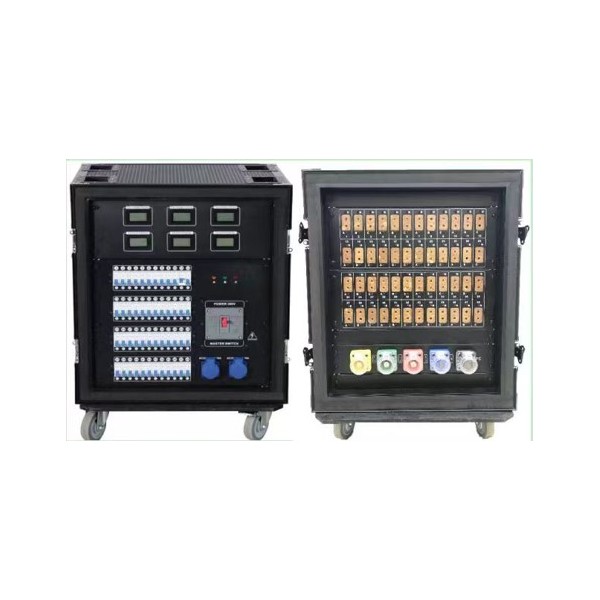

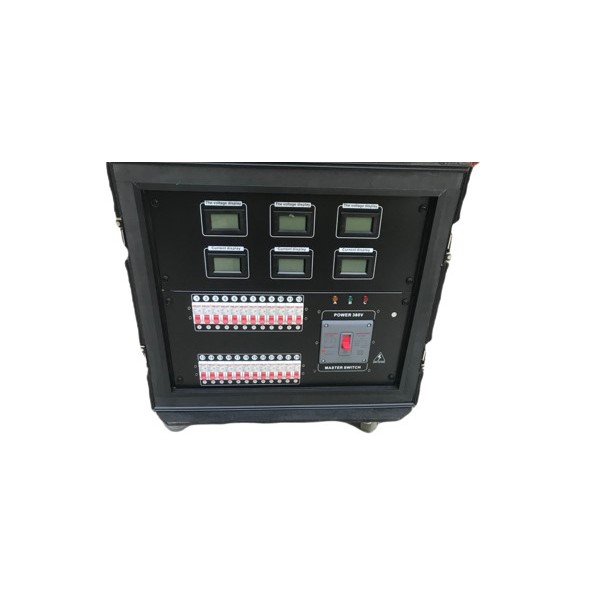

Power supply: three-phase five-wire AC380V±10％%, frequency 50Hz±5％%

Input power: 200A 380V rhinoceros plug

Output: 40A Bakelite plug, maximum 24 channels× ×4KW, optional, can be used for any load.

Equipped with 225A master switch, overload and short circuit double protection high breaking air switch.

Three-phase independent voltage, current, monitoring, three-phase A.B.C indicator.

Power supply: three-phase five-wire AC380V±10％%, frequency 50Hz±5％%

Input power: 400A 380V rhinoceros plug,

Output: 40A bakelite plug, maximum 24 channels× ×4KW, optional for any load.

Equipped with 225A master switch, overload and short circuit double protection high breaking air switch.

Three-phase independent voltage, current, monitoring, three-phase A.B.C indicator.

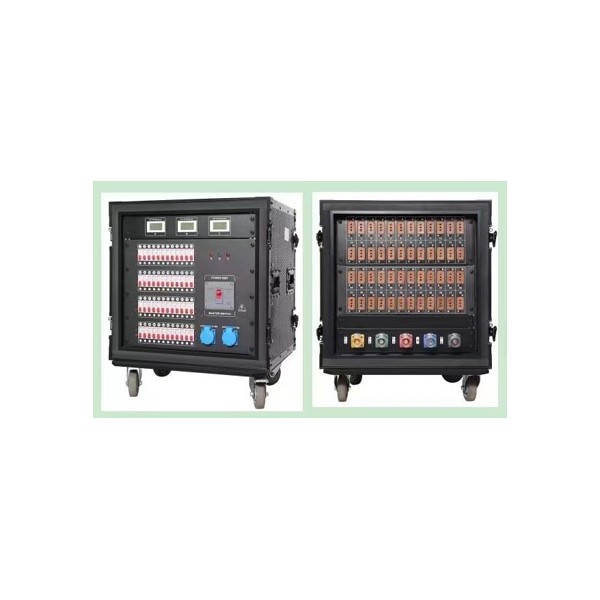

Power supply: three-phase five-wire AC380V±10％%, frequency 50Hz±5％%

Input power: 200A 380V rhinoceros plug

Output: 36 channels 40A bakelite plug, 48 channels× ×3KW maximum, optional, and can be used for any load .40w bakelite plug output.

Equipped with 250A master switch, overload and short circuit double protection high breaking air switch.

Three-phase independent voltage, current, monitoring, three-phase A.B.C indicator.

Dimensions: Length: 650MM Width: 580MM Height: 930MM (16U)

Power supply: three-phase five-wire AC 380 V 10%, frequency 50Hz±5％%.

Input power: 400A 380V rhinoceros plug

Output: 48 channels of 40A bakelite plug, the maximum 48 channels× ×4KW can be selected and can be used for any load. 40W bakelite plug output.

Equipped with 250A master switch, overload and short circuit double protection high breaking air switch.

Three-phase independent voltage, current, monitoring, three-phase A.B.C indicator.

Dimensions: Length: 650MM Width: 580MM Height: 930MM (16U)
