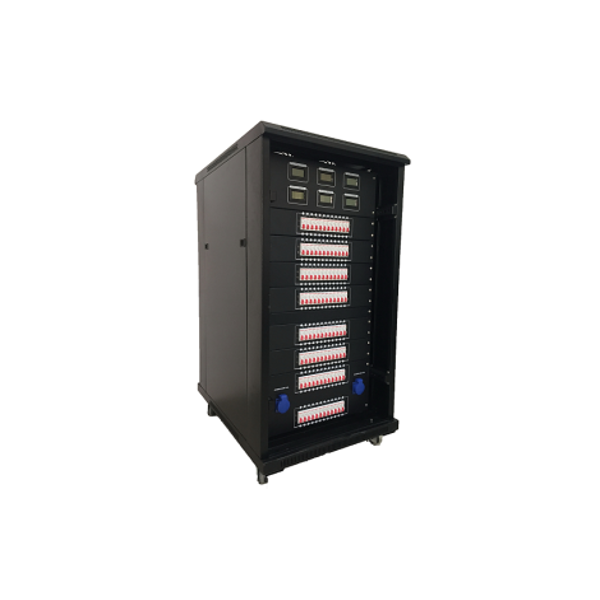

Features:

Power supply: three-phase five-wire AC 380 V 10%, frequency 50Hz±5％%.

Rated current: 400A 380V input, 40A output per channel

Power: 60 channels× ×4KW

Two-pin and three-pin universal sockets are provided for easy use, and high breaking air switch with overload and short-circuit double protection, with 25A air switch for each channel and 250A master switch for two channels.

Visual display of current, with black cabinet

60-way product size: 600*800*1000mm

Approximate weight: 65KG

Features: Power supply: three-phase five-wire AC 380 V 10%, frequency 50Hz±5％%.

Rated current: 400A 380V input, 40A output per channel

Power: 72 channels× ×4KW

Two-pin and three-pin universal sockets are provided for easy use, and high breaking air switch with overload and short-circuit double protection, with 25A air switch for each channel and 250A master switch for two channels.

Visual display of current, with black cabinet

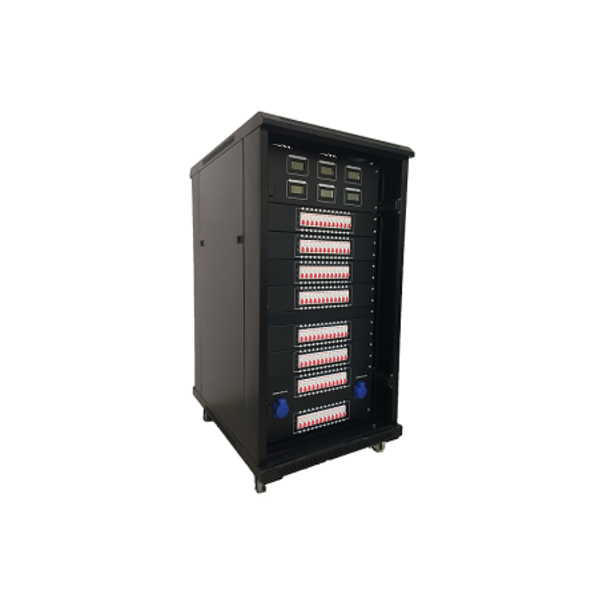

特点：供电：三相五线制AC380V±10％，频率50Hz±5％.

额定电流：400A 380V输入  每路40A输出

功率：96路×4KW

设两脚和三脚万能用插座方便使用，过载与短路双重保护高分断空气开关.带每路 25A空气开关、2路 250A总开关

电压电流直观显示，带黑色机柜

96路产品尺寸：600*800*1200
