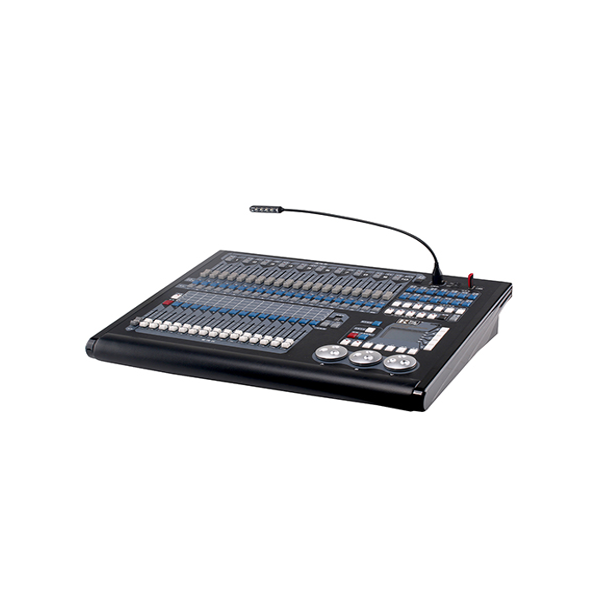

● DMX512/1990 standard, maximum 2048 DMX control channels, four-way photoelectric isolation signal output.

● Professional gooseneck work light, suitable for indoor and outdoor performances. (optional)

● Product size: 600*460*120

● Net weight: 10.7KG

● Power supply: AC 100 -240V / 50-60Hz.

● The maximum control of 200 computer lights or 200 dimming.

● Use the pearl lamp library (R20 format lamp library), and the lamp library can be written by yourself on the console.

● LCD display with backlight, the first Chinese and English display switchable interface. The panel is available in both Chinese and English.

● Built-in graphic track generator, there are 227 built-in graphics, which is convenient for users to control the graphic track of the fixture, such as circle, spiral, rainbow, chase and other effects.

● Graphical parameters (such as: amplitude, speed, interval, wave, direction) can be set independently, making it easier and faster to create the desired shape and scene.

● 5 graphics can be saved in each scene; 10 graphics can be run at the same time.

● With program recording function, it can store up to 100 programs, and the light show demonstration can be done once and for all.

● With built-in time code and external MIDI trigger function, you can easily achieve a dazzling light show with one-key sound and light synchronization.

● The scene can realize the overlapping function, and the graphics have the width parameter, which can be programmed more quickly.

● Has advanced grouping function.

● It can store 100 materials, and you can set material sharing or independent materials as you like.

● There are four material storage modes, which are flexible and convenient for material storage and recall.

● 150 replay scenes can be stored for storing multi-step and single-step scenes. Each multi-step scene can store up to 600 single steps.

● 15 replay scenes can be output and run simultaneously.

● With 15 centralized control faders. Button point control and fader set control are compatible.

● Support functions such as reconfiguring section address code, vertical and horizontal exchange, and channel output reverse.

● The data can be stored in memory in case of shutdown or sudden power failure.

● U disk can back up the console data, and support re-import to the console for use, the same type of console data can be shared.

● Support remote software upgrade, add new functions anytime and anywhere.

● With pre-programming function, pre-programming offline, saving trouble and worry.

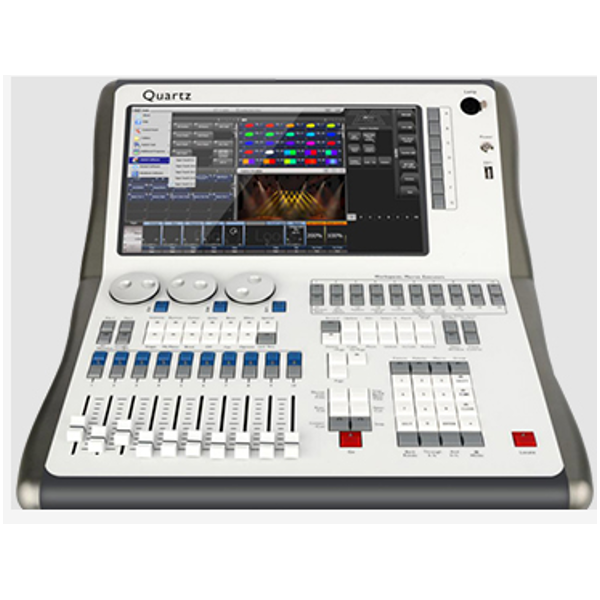

14.1-inch screen, 9.1 10.0 10.1 11.0 11.1 five-system free switching system, with ups power supply default output 4 512, can output 12 512 through the network

Intel Core l5 processor, 240G solid state drive, 8GB RAM, 90 minutes UPS power supply

●Input voltage: 110V~220V 50~60HZ, built-in UPS uninterruptible power supply

Built-in 4 DMX outputs, 2048 channels

·Support ART-NET network output, expandable to 12 UNIVERSE DMX outputs through network

·Support TITAN-NET protocol, expandable to 64 UNIVERSE DMX outputs

10 mechanical page-turning playback faders; 20 custom macro function buttons

Built-in 14.1-inch high-brightness touch screen, expandable for a TITAN FADER WING (playback auxiliary station)

· 20 playback faders, 30 custom macro functions, USB power supply); support headphone output (HEADPHONE) · 1 Gigabit network interface, support ART-NET, TITAN-NET, STREAMING CAN protocol

Compatible with other TITAN system console show files

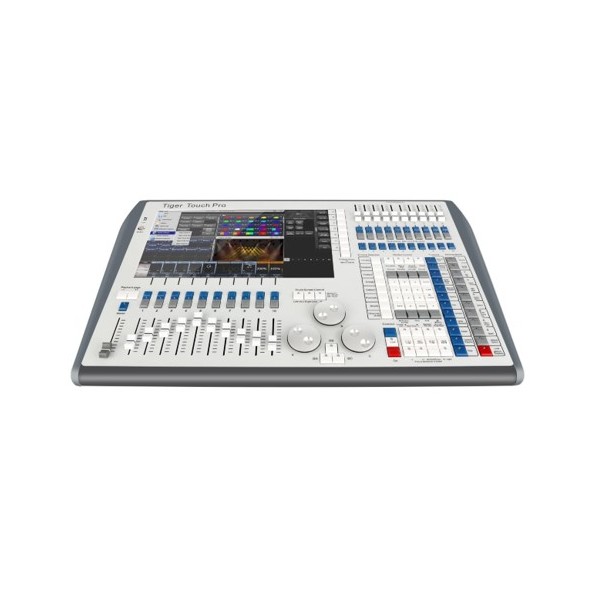

Used powerful tiger console system:

Dual-core processor, 60G solid state drive, 2G memory

Support Chinese menu display, and built-in multi-language

Built-in a 15.4-inch touch screen, and can expand a 17-inch touch screen

8 DMX output ports, 4096 DMX channels

Support ARTNET, and can be expanded to 12 DMX output ports, 6144 channels

10 macro buttons, can edit any program

20 replay faders, support 1000 virtual replays

Powerful CMY palette function

Support graffiti handwriting naming function

Support CITP protocol, can preview the built-in materials of the server or digital lights

Reserve an external WI-FI access point, which can be remotely controlled using Ipod Touch and iphone

Built-in thousands of light libraries, and built-in light library editing software

Built-in Visualiser visual stage simulation software, support video

Provide MIDI time code control, by MIDI remote control playback button or fader

Built-in pixel mapping and built-in graphics generator

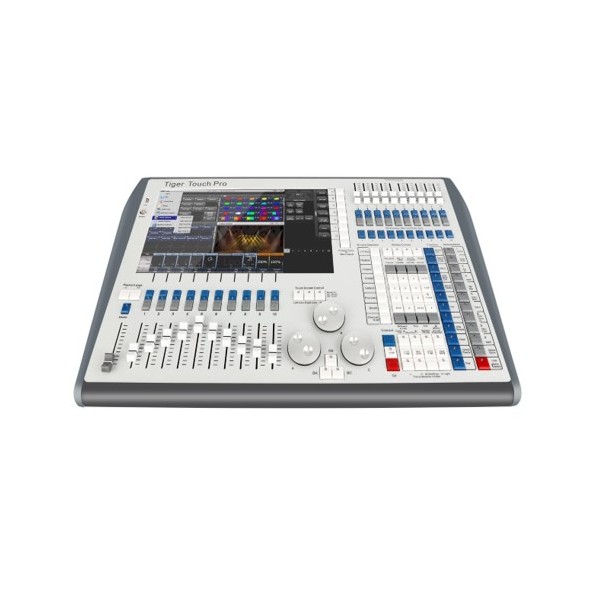

The powerful Titan system and the previous classic pearl system are more user-friendly than the Titan system. Each function is more refined.

Expansion is richer. Give you more freedom in lighting operation. In keeping the operation style and layout of classic pearls, refined selection of functions has been added.

Some less commonly used and unsuitable operations have been removed. After the console is upgraded, let the lighting engineer get started quickly on the basis of the pearl table operation.

·Use the powerful Titan 9.1, 10.1, 11.1, 11.3 multiple versions of the operating system to choose at will; ·Core i7CPU, Kingston 120GB high-speed solid state drive, 4GB 1600 high-speed running memory, the system will generate a backup tool when it leaves the factory, so that your Titan system will be permanent No damage; built-in imported 15.4-inch high-resolution touch screen, support networking to computer equipment to control various lighting 3D visualization software; 30 minutes or more, in order to ensure the safe shutdown of the system; · Support Chinese menu display, built-in multi-language; · Support Art-Net network function, 12 DMX output lines (domain) 6144 channels, · 10 macro function buttons, allowing you to Faster operation console; · 20 playback faders, supporting more than 1000 program playback; · powerful property control window, CMYRGB color board system; · fast and easy-to-use graphics generator, classified Built-in graphics are easier to use; · Support CIPT protocol, you can directly see the image thumbnails of media clips in the media server on the console; · Support Wi-Fi access, wireless control lights, mobile devices (iPhone, iPad Touch) remote control Lamps; ·Built-in thousands of lamp libraries, built-in lamp library editing software, you can edit the lamp library on the console at any time; ·Built-in Visualiser line lighting visualization software, want to pre-program? no problem! ·Support MIDI time code sound and light synchronization function, you can also play music in the console to send time code to control the playback of lighting programs.

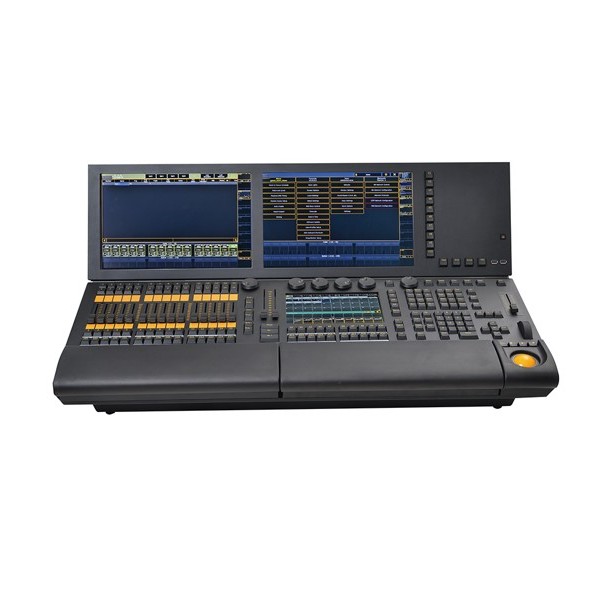

6 DMX outputs, 1 DMX input, connected to expanders, can support up to 65536 channel parameters

2 built-in electric adjustable wide viewing angle 15.4-inch touch screen, built-in a 9-inch touch screen, can be an external touch screen

15 high-precision electric actuators (60mm)

2 AB field electric push rods (100mm)

1 master fader

6 encoders (with PUSH function)

1 high-sensitivity trackball

2 Gigabit Ethernet ports, support MA NET, ARTNET, ETC NET2, PATHPORT, SCAN, SHOWNET, KINET1 signals

5 USB2.0 ports

Independently adjustable yellow backlit keys, built-in keyboard

MIDI input and output interface, LTC/SMPTE time code

Built-in solid state drive

Compatible with MA1 and MA2 systems

Support multiple online backup

Support handheld remote control

Support stage 3D effect simulation, real-time on-site simulation

AC wide voltage power supply: 110-240 V, 50/60Hz

 物理：

 控台尺寸：94cm*66cm*21cm   航空箱尺寸：100CM*87CM*34CM

 净重：42kg

 毛重：75KG

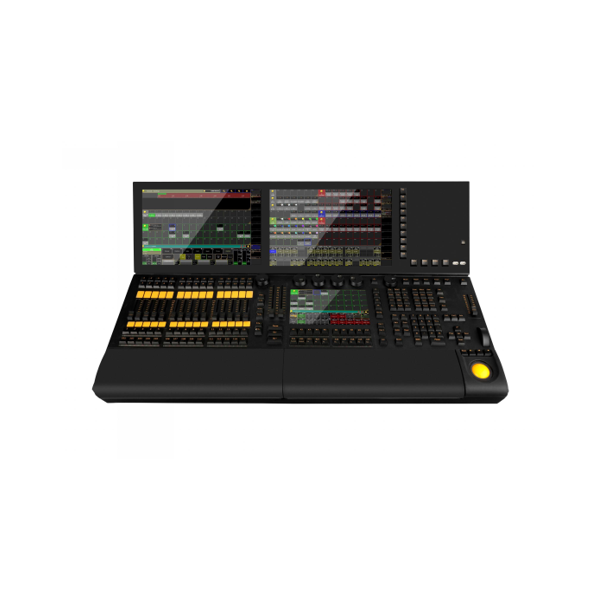

•Linux operating system

•Built-in 2 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch touch screen

• Powerful i5CPU, 4G memory, built-in solid state drive

• 6 DMX output ports, 1 composite DMX input port (can be set as output)

• Up to 65536 channels supported with NPU connection

• 15 replay faders (60mm) with induction function, 50 execution program cases

• 1 master fader, 1 dimmer wheel

• 1 controllable XY-axis high-precision original imported trackball

• 2 A/B field electric push rods (100mm)

• 6 imported industrial-grade wear-resistant encoders (with Push function)

• 2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals

• 5 USB ports, 1 backup USB port

• 2 work light ports

• 2 DVI ports, expandable for two displays

•MIDI input and output interface

• Built-in 1 drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)

• Wide voltage industrial power supply 100V-240V 50/60Hz

• Built-in high-power UPS uninterruptible power supply

• Support RDM function

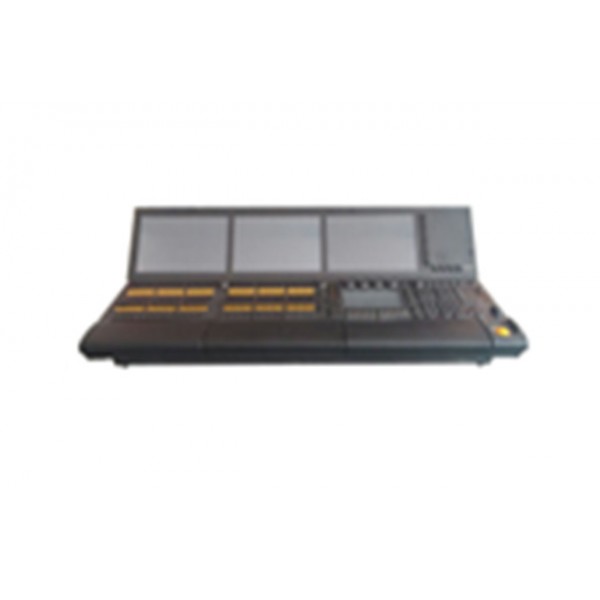

6 DMX outputs, 1 DMX input, the maximum expansion can support 65536 channel parameters

Built-in 3 wide-viewing 15.4-inch touch screens + 1 9-inch high-brightness multi-touch screen, 2 external 15.4-inch touch screens

30 high-precision electric actuators with induction (60mm)

2 AB field electric push rods (100mm)

1 master electric fader

6 optical encoders made in Germany (with PUSH function)

1 high-sensitivity trackball

1 high precision dimming wheel

2 Gigabit Ethernet ports, support MA NET and ARTNET, ACN signal

5 USB2.0 ports

Motorized Adjustable Monitor Clamshell

Built-in keyboard drawer

Built-in keyboard with independent yellow backlight

Independent yellow backlit keys

MIDI input and output interface

LTC/SMPTE timecode

Support for extended putter flanks

2 LED gooseneck light sockets

1 60G SSD

Intel i5 CPU

8GB RAM

3 Geforce graphics cards

AC wide voltage power supply: 110-240 V, 50/60Hz

Built-in Uninterruptible Power Supply (UPS)

Products include:

1 power cord

2 gooseneck lights

A copy of the operating instructions

one air box

software:

English operation interface, compatible with MA1 and MA2 systems

Linux operating system

The system can be installed via U disk

Program data can be saved on hard disk or U disk

Support multiple online backup

Support handheld remote control

Support stage 3D effect simulation, real-time on-site simulation

Program data can be saved on hard disk or U disk

Support DMX512, Artnet, ACN protocol

Support RDM management

Support for Wysiwyg connections

Massive light library support
