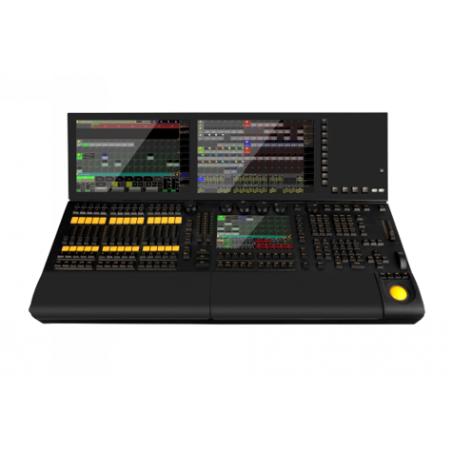

MA2 Console

MA2 Console

•Linux operating system

•Built-in 2 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch touch screen

• Powerful i5CPU, 4G memory, built-in solid state drive

• 6 DMX output ports, 1 composite DMX input port (can be set as output)

• Up to 65536 channels supported with NPU connection

• 15 replay faders (60mm) with induction function, 50 execution program cases

• 1 master fader, 1 dimmer wheel

• 1 controllable XY-axis high-precision original imported trackball

• 2 A/B field electric push rods (100mm)

• 6 imported industrial-grade wear-resistant encoders (with Push function)

• 2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals

• 5 USB ports, 1 backup USB port

• 2 work light ports

• 2 DVI ports, expandable for two displays

•MIDI input and output interface

• Built-in 1 drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)

• Wide voltage industrial power supply 100V-240V 50/60Hz

• Built-in high-power UPS uninterruptible power supply

• Support RDM function
