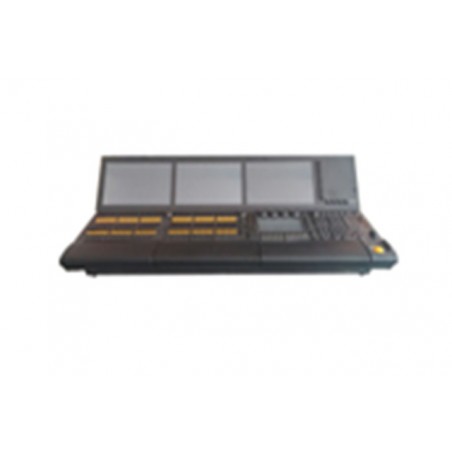

ROC 8000 Console

ROC 8000 Console

6 DMX outputs, 1 DMX input, the maximum expansion can support 65536 channel parameters

Built-in 3 wide-viewing 15.4-inch touch screens + 1 9-inch high-brightness multi-touch screen, 2 external 15.4-inch touch screens

30 high-precision electric actuators with induction (60mm)

2 AB field electric push rods (100mm)

1 master electric fader

6 optical encoders made in Germany (with PUSH function)

1 high-sensitivity trackball

1 high precision dimming wheel

2 Gigabit Ethernet ports, support MA NET and ARTNET, ACN signal

5 USB2.0 ports

Motorized Adjustable Monitor Clamshell

Built-in keyboard drawer

Built-in keyboard with independent yellow backlight

Independent yellow backlit keys

MIDI input and output interface

LTC/SMPTE timecode

Support for extended putter flanks

2 LED gooseneck light sockets

1 60G SSD

Intel i5 CPU

8GB RAM

3 Geforce graphics cards

AC wide voltage power supply: 110-240 V, 50/60Hz

Built-in Uninterruptible Power Supply (UPS)

Products include:

1 power cord

2 gooseneck lights

A copy of the operating instructions

one air box

software:

English operation interface, compatible with MA1 and MA2 systems

Linux operating system

The system can be installed via U disk

Program data can be saved on hard disk or U disk

Support multiple online backup

Support handheld remote control

Support stage 3D effect simulation, real-time on-site simulation

Program data can be saved on hard disk or U disk

Support DMX512, Artnet, ACN protocol

Support RDM management

Support for Wysiwyg connections

Massive light library support
