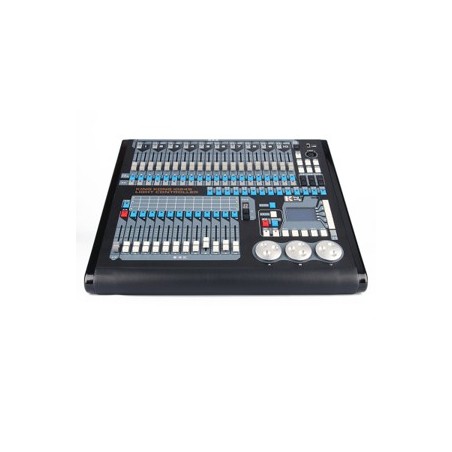

DMX512/1990 standard, maximum 1024 DMX control channels, photoelectric isolation signal output
Maximum control of 120 computer lights or 1 channel dimming, using pearl lamp library
Built-in graphics trajectory generator, 235 built-in graphics, convenient for users to control the graphics trajectory of the scanner, such as drawing circles, spirals, rainbows, chasing and other effects. Graphic parameters (such as: amplitude, speed, interval, wave, direction, cycle mode, grouping) can be set independently.
100 materials, with 4 modes, more flexible.
120 replay scenes are used to store multi-step scenes, single-step scenes and scene collections. A multi-step scene can store up to 600 steps.
LED display with backlight, display in Chinese and English.
Shutdown data retention.
U disk backup and upgrade
Professional gooseneck work light, suitable for outdoor performances. (Optional)
Power supply: AC100-240V/50-60Hz
DMX512 channel number: 1024
Number of computer lights: 120
Scanner re-matching address code: support
Horizontal and vertical exchange of lamps and lanterns: support
Lamp channel inverted output: support
Lamp channel sliding mode switch: support
Maximum available control channels for each scanner: 40 main channels + 40 fine-tuning channels
Fixture library: Support Pearl R20 Fixture Library
Number of scenes that can be saved: 120
The number of scenes that can run at the same time: 12
The total number of steps in a multi-step scenario: 600
Time control of the scene: fade in, fade out, LTP slide
Number of graphics that can be stored in each scene: 5
Fader to start scene and dimming: support
Interlocking scene: support
Point control scene: support
Graphics generator: Dimmer, P/T, RGB, CMY, Color, Gobo, Iris, Focus graphics can be generated
Number of graphics that can be run at the same time: 8
Master Fader: Global Master Control
Immediately Black Field: Support
Turntable to adjust channel value: support
Fader to adjust the channel value: support
Push rod dimming: support
U disk reading: support FAT32 format
Size: 500*460*120
