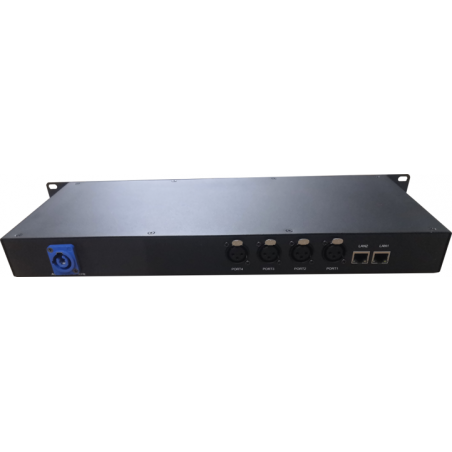

Four Port Expander

Four Port Expander

Technical parameter:

Network signal: ART NET TCP IP

Number of signal channels: 4 DMX512 outputs and inputs

Working voltage: AC 100V~240V 47/60HZ

Weight: gross weight 2.08KG net weight 2.3KG

Features:

1. Self-developed software is by no means a copy

2. The CPU adopts advanced ARM Cortex-m4

3. Independent photoelectric isolation for each output signal, isolated power supply 2000V DC

4. Consoles that support all ART NET network protocols, such as Pearl Expert, Touch Tiger, MA, Flying Pig, etc.

5. It can convert conventional DMX512 signal into ART NET network signal.

6. The signal output XLR socket adopts the original Swiss NEUTRIK three-core socket (optional five-core socket)

7. Device firmware can be upgraded through U disk or network

8. System parameters can be set through LCD screen or network.

9. Standard 1U 19-inch rack mount
