6 DMX outputs, 1 DMX input, connected to expanders, can support up to 65536 channel parameters

2 built-in electric adjustable wide viewing angle 15.4-inch touch screen, built-in a 9-inch touch screen, can be an external touch screen

15 high-precision electric actuators (60mm)

2 AB field electric push rods (100mm)

1 master fader

6 encoders (with PUSH function)

1 high-sensitivity trackball

2 Gigabit Ethernet ports, support MA NET, ARTNET, ETC NET2, PATHPORT, SCAN, SHOWNET, KINET1 signals

5 USB2.0 ports

Independently adjustable yellow backlit keys, built-in keyboard

MIDI input and output interface, LTC/SMPTE time code

Built-in solid state drive

Compatible with MA1 and MA2 systems

Support multiple online backup

Support handheld remote control

Support stage 3D effect simulation, real-time on-site simulation

AC wide voltage power supply: 110-240 V, 50/60Hz

 物理：

 控台尺寸：94cm*66cm*21cm   航空箱尺寸：100CM*87CM*34CM

 净重：42kg

 毛重：75KG

•Linux operating system

•Built-in 2 electric lift 15.4-inch industrial full-view touch screen, 1 9-inch touch screen

• Powerful i5CPU, 4G memory, built-in solid state drive

• 6 DMX output ports, 1 composite DMX input port (can be set as output)

• Up to 65536 channels supported with NPU connection

• 15 replay faders (60mm) with induction function, 50 execution program cases

• 1 master fader, 1 dimmer wheel

• 1 controllable XY-axis high-precision original imported trackball

• 2 A/B field electric push rods (100mm)

• 6 imported industrial-grade wear-resistant encoders (with Push function)

• 2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals

• 5 USB ports, 1 backup USB port

• 2 work light ports

• 2 DVI ports, expandable for two displays

•MIDI input and output interface

• Built-in 1 drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)

• Wide voltage industrial power supply 100V-240V 50/60Hz

• Built-in high-power UPS uninterruptible power supply

• Support RDM function

Input voltage: AC100~240V/50~60Hz

Laser Light source: 40W

Color:RGB

Dimmer: 0~100% linear

DMX channels: 27

Working mode: DMX/ILDA/Automatic

Scan Rate: 40Kpps

Basic gobo: 200pcs(SD card gobo 3000pcs, SD card animation 255pcs) Beam parameter: diameter is less than <3mm divergence angle<1.5mrad Laser safety: overload protection

Pan: infinite (include 540,630,900,1800degree) Tilt: infinite (include 270,180,540,1080degree)

Protection level:IP65

Weight:48kg Size: L50*W50*H67CM

Input voltage: AC100~240V/50~60Hz

Laser Light source: 50W

Color:RGB

Dimmer: 0~100% linear

DMX channels: 27

Working mode: DMX/ILDA/Automatic

Scan Rate: 40Kpps

Basic gobo: 200pcs(SD card gobo 3000pcs, SD card animation 255pcs) Beam parameter: diameter is less than <3mm divergence angle<1.5mrad Laser safety: overload protection

Pan: infinite (include 540,630,900,1800degree) Tilt: infinite (include 270,180,540,1080degree)

Protection level:IP65

Weight:48kg Size: L50*W50*H67CM

Input voltage: AC100~240V/50~60Hz

Laser Light source: 20W

Color:Green

Dimmer: 0~100% linear

DMX channels: 27

Working mode: DMX/ILDA/Automatic

Scan Rate: 40Kpps

Basic gobo: 200pcs(SD card gobo 3000pcs, SD card animation 255pcs) Beam parameter: diameter is less than <3mm divergence angle<1.5mrad Laser safety: overload protection

Pan: infinite (include 540,630,900,1800degree) Tilt: infinite (include 270,180,540,1080degree)

Protection level:IP65

Weight:48kg Size: L50*W50*H67CM

Output color

True color，Red，Green，Blue，Yellow，Cyan，Magenta，White

Scan rate: 40Kpps  Angle: 60 degree

Protection level : IP65

Working mode： ILDA, FB4，Automatic, DMX

Electrical

Input voltage: AC100~240V/50~60Hz   Rate power: 1500W   Fuse:10A

Lighting size:  L66*W50*H40cm Net weight：51KG

Flight case size: L85*52*50cm  Gross weight :74KG(fly case)

Scan rate: 40Kpps  Angle: 60 degree

Protection level : IP65

Working mode： ILDA, FB4，Automatic, DMX

Electrical

Input voltage: AC100~240V/50~60Hz   Rate power: 2000W   Fuse:10A

Lighting size:  L66*W50*H40cm Net weight：49KG

Flight case size: L85*52*50cm  Gross weight :72KG(fly case)

6 DMX outputs, 1 DMX input, the maximum expansion can support 65536 channel parameters

Built-in 3 wide-viewing 15.4-inch touch screens + 1 9-inch high-brightness multi-touch screen, 2 external 15.4-inch touch screens

30 high-precision electric actuators with induction (60mm)

2 AB field electric push rods (100mm)

1 master electric fader

6 optical encoders made in Germany (with PUSH function)

1 high-sensitivity trackball

1 high precision dimming wheel

2 Gigabit Ethernet ports, support MA NET and ARTNET, ACN signal

5 USB2.0 ports

Motorized Adjustable Monitor Clamshell

Built-in keyboard drawer

Built-in keyboard with independent yellow backlight

Independent yellow backlit keys

MIDI input and output interface

LTC/SMPTE timecode

Support for extended putter flanks

2 LED gooseneck light sockets

1 60G SSD

Intel i5 CPU

8GB RAM

3 Geforce graphics cards

AC wide voltage power supply: 110-240 V, 50/60Hz

Built-in Uninterruptible Power Supply (UPS)

Products include:

1 power cord

2 gooseneck lights

A copy of the operating instructions

one air box

software:

English operation interface, compatible with MA1 and MA2 systems

Linux operating system

The system can be installed via U disk

Program data can be saved on hard disk or U disk

Support multiple online backup

Support handheld remote control

Support stage 3D effect simulation, real-time on-site simulation

Program data can be saved on hard disk or U disk

Support DMX512, Artnet, ACN protocol

Support RDM management

Support for Wysiwyg connections

Massive light library support

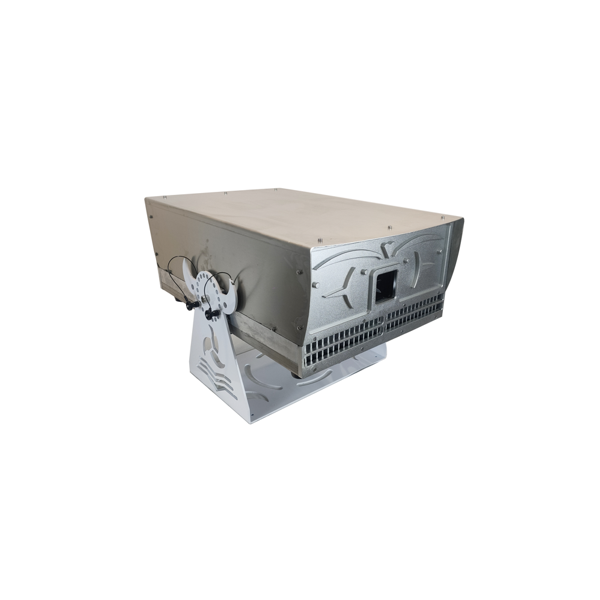

Input voltage: AC100~240V/50~60Hz

Laser Light source: 60W

Color:RGB

Dimmer: 0~100% linear

DMX channels: 27

Working mode: DMX/ILDA/Automatic

Scan Rate: 40Kpps

Basic gobo: 200pcs(SD card gobo 3000pcs, SD card animation 255pcs) Beam parameter: diameter is less than <3mm divergence angle<1.5mrad Laser safety: overload protection

Pan: infinite (include 540,630,900,1800degree) Tilt: infinite (include 270,180,540,1080degree)

Protection level:IP65

Weight:48kg Size: L50*W50*H67CM

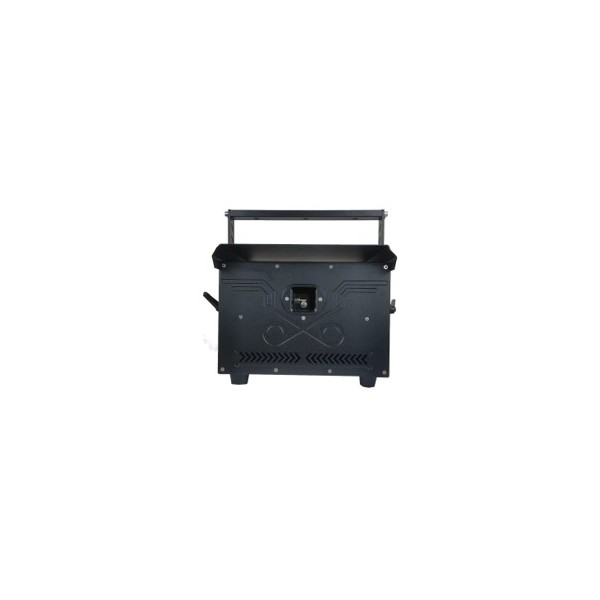

Output color: Green

Scanner parameter:

Scan rate: 30Kpps Angle:60degree

Working mode

Automatic、DMX、Master Slave、ILDA

DMX Channels: 10 or 34

Graphics parameter:

Internal pattern:128Pcs

Memory card cartoon:40pcs

Electrical parameter:

Input voltage: AC100~250V/50~60Hz Rate power:250W Fuse:3A

Package Parameter

Light size: L350*W300*H260mm

Net weight:10kg

Flight case Size:L500*W400*H400mm

Gross weight:17kg

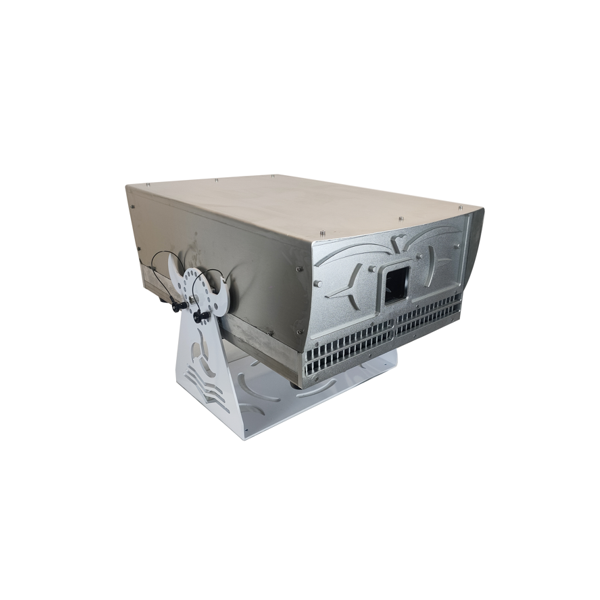

RGB100W  (Red638nm/30w+Green520nm/30w+ Blue445nm/40w)

Output color True color，Red，Green，Blue，Yellow，Cyan，Magenta，White

Scan rate: 40Kpps   Angle: 60 degree

Working mode  ILDA, Automatic,DMX,FB4 inside

Protect level :IP65

Electrical Input voltage: AC100~240V/50~60Hz   Rate power: 2000W   Fuse: 10A

Size and Weight

Lighting size:  L66*W50*H40cm Net weight：58KG

Flight case size: L85*52*50cm  Gross weight :81KG(fly case)

Input voltage: AC100~240V/50~60Hz

Laser Light source: 100W

Color:RGB

Dimmer: 0~100% linear

DMX channels: 27

Working mode: DMX/ILDA/Automatic

Scan Rate: 40Kpps

Basic gobo: 200pcs(SD card gobo 3000pcs, SD card animation 255pcs) Beam parameter: diameter is less than <3mm divergence angle<1.5mrad Laser safety: overload protection

Pan: infinite (include 540,630,900,1800degree) Tilt: infinite (include 270,180,540,1080degree)

Protection level:IP65

Weight:48kg Size: L50*W50*H67CM
